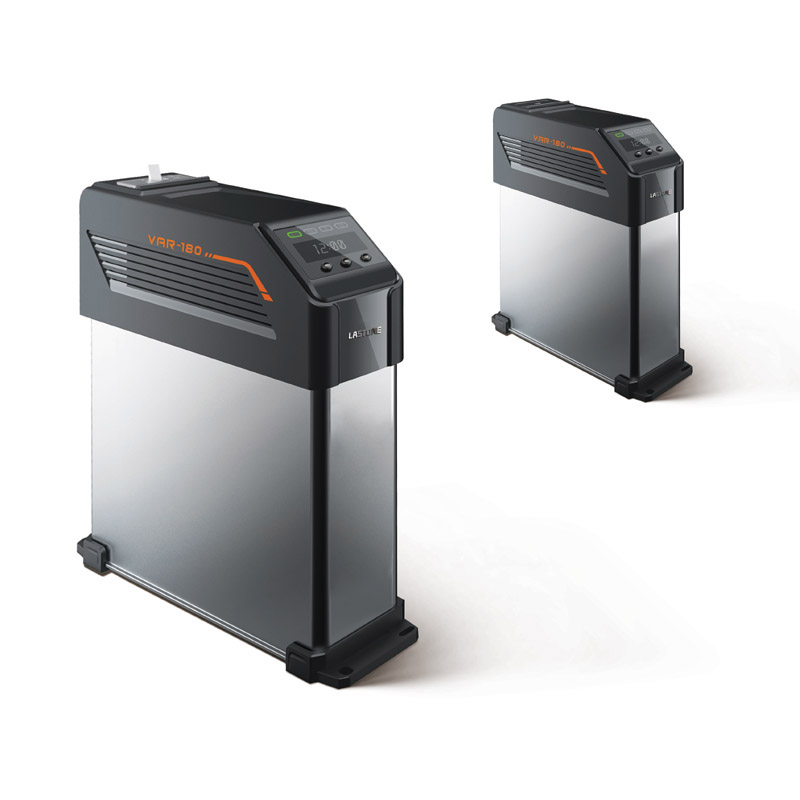

What Are Low Voltage Power Capacitors?

Low Voltage Power Capacitors are devices that help in improving the power consumption of systems that operate at voltages below 1000V. The specific role of these capacitors is to correct voltage power issues by counteracting any poor power factor resulting from the presence of inductive devices like motor magnets and transformers, which consume electrical energy unnecessarily.

Power factor correction is an essential aspect to bear in mind, especially in environments like industrial, commercial, and institutional sectors where substantial fluctuations in electrical loads occur. Power factor correction capacitors help solve this issue by supplying the reactive power at the source and improving system efficiency and lowering utility expenditures.

How Do Low Voltage Power Capacitors Work?

Power factor is an indication of how well electrical energy is transformed into useful work. Equipment like HVAC systems and heavy machinery often have a negative impact on this process and draw more current than necessary. Low voltage power capacitors solve this problem by providing leading reactive power which helps to increase the power factor of the whole system.

These capacitors can be either installed at the main switchboard or in the equipment itself. Therefore, they share the electrical load and thus, ease the pressure on the power supply and provide a smooth voltage profile.

Selecting the Right Low Voltage Power Capacitor

Selection hinges on a few critical considerations:

● Voltage & Capacity: Make sure that the rating of the capacitor matches the voltage of your system. For instance, standard ratings can be 230V, 400V, and even 690V.

● Duty Cycle & Environment: Choose capacitors that match your operating cycle and can withstand site conditions such as temperature and humidity. Prefer manufacturers who provide reliable data and hold quality certification per IEC 60831.

● Automation: Nowadays, various plants employ automatic PFC banks that connect and disconnect capacitor sections depending on changes in the load, performing their task without involvement of any human operators.

Installation and Maintenance Best Practices

Capacitors are to be installed close to the important inductive loads for localized correction, or they can be installed at a specific panel to provide a universal solution throughout the installation. The installation of capacitors is to be carried out according to the instructions provided by the manufacturers.

Regular maintenance is very limited but important. Check capacitors every 6-12 months for mechanical problems, excessive heating, or bulging. Having reliable records makes Troubleshooting and Optimization better.

Benefits & Applications of Power Factor Correction

The tangible gains from integrating Low Voltage Power Capacitors include:

● Energy Savings: Power factor correction reduces the power consumed and results in saving on electricity bills as well as prevents penalties by the electric company.

● Equipment Longevity: Lowered electrical energy loss will result in decreased overheating and an increased lifespan of motors, transformers, and switching devices.

● System Capacity: Improve the usable capacity of transformers and cables without expensive upgrades.

These capacitors are perfect for various sectors such as manufacturing plants, shopping centres, hospitals, educational institutions and wastewater treatment plants.

How to Improve Power Factor Effectively

Commence the monitoring of power factor at your site by making use of suitable meters. Determine which load types are mainly responsible for low power factor; normally motor units and chiller systems are responsible. Fit the suitable size and type of capacitor (single capacitors or a capacitor bank), at appropriate places.

Utilize automatic controllers for dynamic modifications in environments that experience changing loads, and to maintain the benefits received from post-installation by periodically monitoring the power factor of the system.

Frequently Asked Questions (FAQ)

What is a Low Voltage Power Capacitor used for?

A Low Voltage Power Capacitor is used to correct poor power factor caused by inductive loads such as motors, transformers, and HVAC systems. It supplies reactive power at the source, improving system efficiency and reducing utility costs.

What should I consider when selecting a capacitor?

Consider voltage and capacity, duty cycle and environment (temperature and humidity), and whether automation is needed. Prefer manufacturers who provide reliable data and hold quality certification per IEC 60831.

What are the benefits of power factor correction?

Key benefits include energy savings, reduced electricity bills and utility penalties, longer equipment lifespan, and improved system capacity without expensive upgrades.

Emerging Trends and Applications

Modern low-voltage power capacitors increasingly feature smart monitoring and IoT integration for real-time monitoring and predictive maintenance. With the growth of renewable energy, capacitors are also used to regulate voltage profiles in solar and wind farms. Efficient, data-driven, and eco-friendly power factor correction is becoming the industry norm as sustainability goals gain momentum.

Low Voltage Power Capacitors offer a simple, effective way to improve performance, cut costs, and protect equipment from poor power quality. With the right products and proper maintenance, facilities can achieve effective power factor correction while adapting to industry demands through automation.
