The industrial power systems are very complex, therefore, power quality is very much needed in these systems. One of the vital elements contributing to power quality is Harmonic Filter Reactor. As the industries are always on the lookout for improved efficiency and reliability of power systems, knowing about these filter reactors is of utmost importance. This article discusses Harmonic Filter Reactor, and its operation methods, along with the applications.

What Is a Harmonic Filter Reactor and How Does It Work?

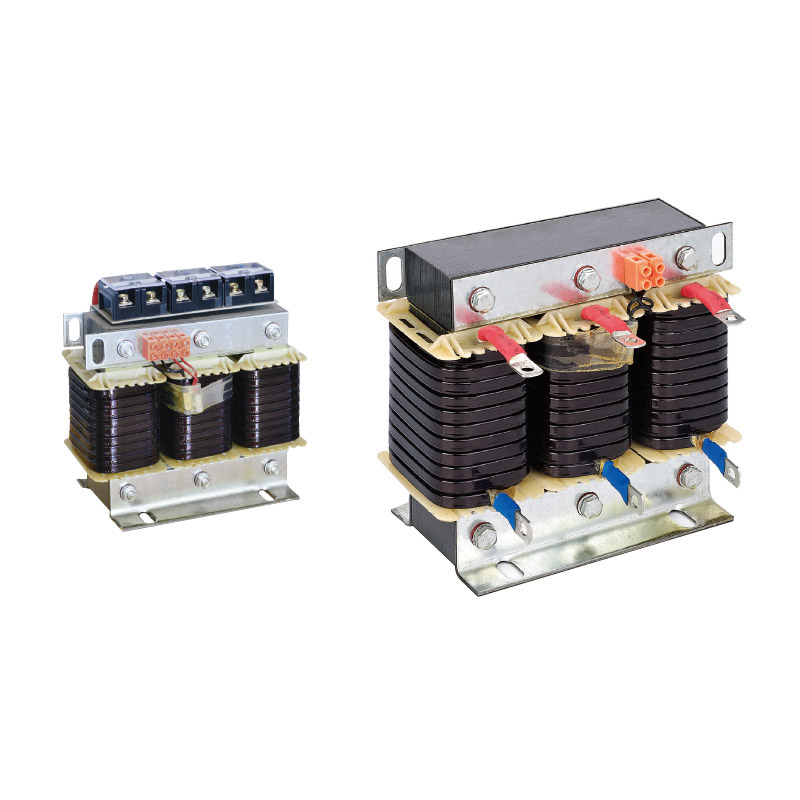

A Harmonic Filter Reactor is an electrical equipment designed to filter out harmonics in electrical systems. Harmonics are unwanted frequencies which can result in inefficiencies in power systems and which may cause damage to them. This reactor functions by changing odd frequency and simply filtering out bad frequencies hence improving the quality of power being obtained.

The system can be vital in situations where critical machinery or high-performance machinery requires a constant and dependable power source. Gaining insights into how the technology works assists in creating customized solutions that suit specific industrial requirements, thereby improving efficiency and decreasing energy consumption.

Key Applications of Harmonic Filter Reactors in Industrial Power Systems

Harmonic Filter Reactors serve their purpose in multiple business sectors. Although mostly used in the facilities making use of considerable amounts of power electronics, these devices play an important role in the mitigation of harmonic distortion and ensuring the long life of such equipment. The industries related to manufacturing, data centers, and mining often utilize these properties.

Harmonic Filter Reactor vs Detuned Reactor: Key Differences

While both systems are instrumental in harmoniс control, a detuned reactor is engineered to adjust the resonant frequency of the circuit to a point away from the harmonic frequencies, which modifies the purpose in slightly different ways. A filter reactor, on the other hand, is more designed to cut down on available harmonic frequencies, which leads to different applications depending on the requirements of the system.

How to Select the Right Harmonic Filter Reactor for Your System

When selecting the right harmonic filter reactor, it is important to take into account several factors, including the specific harmonic order needing filtering, the power system impedance, and the compatibility of the reactor with other power quality devices in use. Talking to a specialist is the best way to ensure that the selected filter reactor fulfills the specific requirements of industrial facilities.

Other factors to consider include the kind of load and the extent of harmonic mitigation needed. Choosing the correct device can greatly improve the functionality of the system while reducing chances of breakdowns and failures of equipment.

FAQ

1. What is the main purpose of a Harmonic Filter Reactor?

Harmonic Filter Reactors are used for the purpose of countering the problem of harmonic distortion in electrical systems, thus raising the quality of power and safeguarding equipment from damage due to harmful frequencies.

2. Can Harmonic Filter Reactors be used in residential settings?

Although Harmonic Filter Reactors are mainly applied in industries and businesses because of the data and sensitive nature of the systems, these can also be modified for residential purposes where there is a large use of electricity.

3. How does a Harmonic Filter Reactor help in energy savings?

By enabling the effective filtering of harmonic frequencies, these reactors provide support in achieving an optimum level of power quality, resulting in lower losses and better overall efficiency of the electrical system, contributing to large-scale energy savings over the long run.

Harmonic Filter Reactor is an essential instrument for all industries looking for ways to improve the power quality of their devices and the stability of the performance of electrical installations. Although there may seem to be a lot to consider regarding particular applications and some differences in various types of reactors, understanding the importance of these aspects will allow choosing and applying the right option. Ultimately, this can result in massive savings and enhanced efficiency, which undoubtedly makes this option very profitable for companies that value sustainability and reliability in the long-term perspective.
