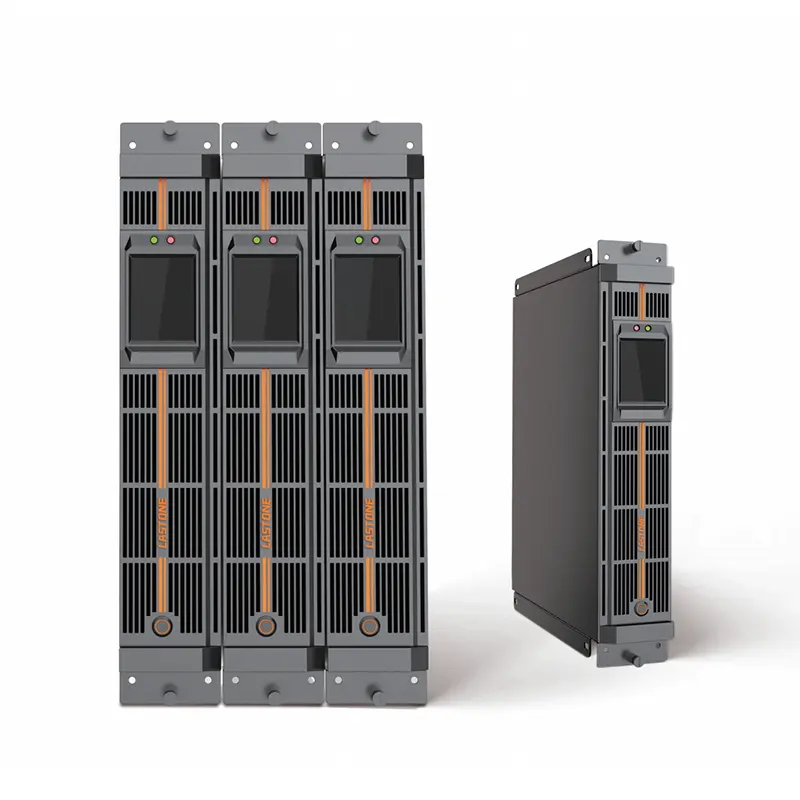

Hybrid power quality equipment combines the strengths of active and passive filtering technologies into a single, coordinated solution. Rather than relying on just one method to clean up electrical noise and instability, these systems tackle a wider range of disturbances at once. The goal is straightforward: deliver cleaner power, protect sensitive equipment, and adapt to changing loads without over-engineering the solution.

What Makes It Different

In a typical facility, power problems rarely come from a single source. You might have harmonics from variable frequency drives, voltage sags from heavy machinery starting up, and reactive power dragging down overall efficiency. A passive filter alone handles specific harmonic orders well but lacks flexibility. An active filter adjusts dynamically but can be overkill and overpriced if applied to every problem.

Hybrid power quality equipment bridges that gap. It uses active components to respond in real time to fluctuating disturbances, while passive elements provide a rugged, low-loss foundation for steady-state issues like constant harmonic currents and reactive power. The two work in parallel, sharing the load in a way that reduces stress on any single component. That means less heat, longer service life, and a smaller physical footprint compared to using separate devices.

Where the Real Value Shows Up

Installations that benefit most from this approach tend to share a few traits: they have a mix of linear and non-linear loads, they can‘t afford unplanned downtime, and they want to avoid oversized equipment just to handle brief power spikes. Manufacturing lines, water treatment plants, commercial buildings with extensive HVAC, and renewable energy sites all fall into this category.

A few practical advantages stand out:

●Responsive compensation：The active section injects correction currents exactly when and where they are needed, keeping voltage distortion and flicker in check even when load profiles shift throughout the day.

●Energy efficiency：By offloading steady harmonic filtering and reactive power compensation to passive circuits, overall system losses drop. That directly lowers operating costs without requiring constant adjustments.

●Easier integration：Because the equipment handles multiple power quality tasks internally, installation often requires fewer external components and less engineering time upfront.

Think of a food processing plant running conveyor motors, compressors, and precise packaging machines on the same supply. A sudden inrush from a motor start could trip sensitive controls downstream. Hybrid power quality equipment dampens that transient while continuously filtering the harmonics the drives produce during normal operation all within a single enclosure.

What to Look for When Specifying a Unit

Focus on how well the system coordinates its active and passive stages. A well-designed solution monitors the bus in real time and decides how much correction each stage should contribute. This keeps the active inverter from being overloaded by tasks the passive stage can handle more efficiently.

Also check for modularity and maintenance access. Many systems allow individual modules to be serviced without shutting down the entire unit. In an industrial setting, that keeps production running during routine inspections.

A Practical Path Forward

Hybrid power quality equipment isn‘t a universal fix, but for sites juggling multiple power quality issues on a single bus, it can simplify the entire setup. It reduces the total number of devices on the wall, cuts installation time, and often delivers better performance than a purely active or purely passive approach. The result is a power system that stays stable, runs cooler, and costs less to operate year over year.
