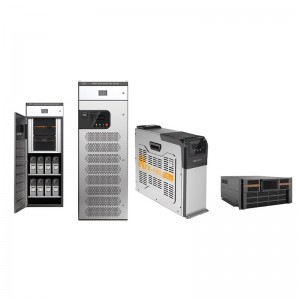

The dynamic integrated compensation device integrates APF/SVG modules and HYBAGK anti-harmonic capacitors to achieve precise power quality management. It is designed for industrial and commercial applications and can optimize Capacitor Compensation while suppressing harmonics to ensure stable energy efficiency and grid reliability.

The dynamic integrated compensation device combines APF/SVG modules and HYBAGK anti-harmonic capacitors, designed for industrial plants, data centers and commercial facilities, and can dynamically adjust reactive power compensation in real time to maintain voltage stability and minimize energy losses. The integration of active power filter (APF) or static var generator (SVG) modules ensures a fast response to load fluctuations, and the HYBAGK capacitor modules can neutralize harmonic interference and protect sensitive equipment from damage.

Modular architecture enables seamless expansion across a wide range of applications. The APF/SVG module is packaged in a compact cabinet with pre-installed incoming circuit breakers and fast-acting fuse protection for enhanced safety. HYBAGK capacitors offer flexible configurations from 5kvar to 60kvar, complementing APF/SVG units that offer 50A (35kvar), 100A (70kvar) or 100kvar capacities. Adaptability ensures customized Capacitor Compensation for small-scale operations and high-demand environments. A rear ventilation system with dedicated filter holes prevents overheating, ensuring uninterrupted performance.

By coordinating active and passive compensation methods, the dynamic integrated compensation device reduces harmonic distortion to less than 5%, exceeding the IEEE-519 standard. The anti-resonance design of the HYBAGK capacitor eliminates the risk of overvoltage caused by harmonic amplification. The APF/SVG module continuously monitors the grid conditions and injects counteracting current within milliseconds to balance reactive power.

Installation and maintenance processes are streamlined and user-friendly. Pre-installed cabinets minimize on-site wiring, reducing deployment time by up to 40%. Operators can monitor system performance through integrated communication interfaces, enabling remote adjustments and fault diagnosis. HYBAGK capacitors’ self-healing film technology extends service life, and the solid-state design of APF/SVG modules minimizes wear, helping to reduce downtime and save long-term costs.

Dynamic integrated compensation devices can help companies improve operational efficiency, meet regulatory requirements, and reduce their carbon footprint, proving that intelligent capacitor compensation is no longer optional in the modern energy landscape.
