For electrical systems, it is very important to ensure that the power factor remains as high as possible for increased efficiency. Capacitor Switching Contactors are one of the pieces of equipment that are used in order to accomplish this. These components are crucial for maintaining capacitance in electrical systems to provide effective use of power. Knowledge of what the Capacitor Switching Contactor does will help in making the right choice when one is trying to manage electrical power.

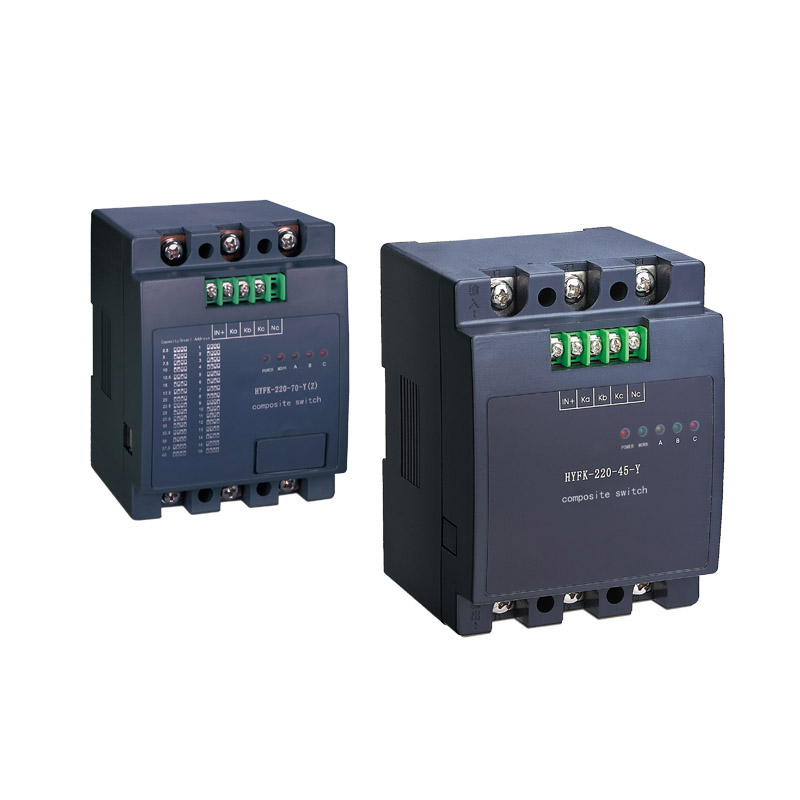

What Is a Capacitor Switching Contactor?

A Capacitor Switching Contactor refers to an electrical/mechanical device that performs functions of making or breaking capacitor connections in electric networks. The main function of this type of contact is to absorb the high initial currents when capacitors are turned on and off. Consequently, this is very crucial in protecting both contactor and the capacitor bank from harm being caused due to high initial currents. These types of contactors are considered to be important elements in capacitor switchgear that enable the switching of capacitor power circuits.

How Does a Capacitor Switching Contactor Work?

The functioning of a capacitor switching contactor is quite simple. As soon as the control circuit sends the signal for activation, the contactor makes contact and allows current to flow into the capacitor bank. This enables the system to have more capacitance, leading to improved power factor. On the other hand, when the control signal is switched off, the contactor breaks contact and prevents the capacitors from being in the circuit. Furthermore, this switching can be automated by means of controllers that detect the power factor and ensure that capacitors are switched accordingly.

Key Technical Specifications

While picking a Capacitor Switching Contactor, it is crucial to take into account a number of important specifications to guarantee compatibility and performance. The following are things to keep in mind:

- Rated Voltage: Ensure the contactor can handle the systems’ operating voltage.

- Current Rating: It must support the required load current of the capacitor bank.

-Capacity for Inrush Current: This aspect is very important, as it shows how effectively the contactor can deal with the influx current produced during the capacitor’s activation.

- Switching Frequency: Determine how frequently the contactor will function in order to choose one that is able to endure constant operation without breaking down.

Common Applications and Use Cases

Capacitor Switching Contactors are widely used in various sectors, including:

- They also contribute to the overall improvement of the power factor of the industry with factories and industrial plants, bringing down the expenses incurred on energy.

- Commercial Structures: These contractors help manage energy consumption, resulting in lower bills for electricity.

- Application of renewable energy: In the solar and wind energy systems, it is crucial to ensure stable operating power factor in capacitor management.

Frequently Asked Questions

1. What is a capacitor switching contactor?

A capacitor switching contactor is an instrument used to either switch on or off capacitors for the purpose of improving power factor regulation.

2. How does a capacitor switching contactor work?

The process involves the opening and closing of contacts as controlled by the electrical signals sent to it so that the capacitors can be connected to the electric system for power factor correction.

3. What are the key technical specifications to consider?

The important specifications include voltage rating, current rating, inrush current capacity, and switching frequency.

4. Where are capacitor switching contactors commonly used?

In many industrial energy systems, commercial buildings, and renewable energy applications, these devices are frequently utilized.

In conclusion, the Capacitor Switching Contactor is an essential component to sustain an effective power factor and hence to improve both the energy efficiency and the operational costs of different electrical systems. If you comprehend how it works and its technical specifications and applications, you will be able to assess its suitability for your needs. Choosing the appropriate equipment will allow you not only to optimize the energy consumption but also to promote sustainable practices in power usage.
