A Capacitor Contactor serves a vital purpose in improving power quality in electrical systems. The selection of an appropriate Capacitor Switching Contactor is important for efficient operation of capacitor banks, used mainly in industry for correcting power factor.

What Is a Capacitor Switching Contactor and How Does It Work?

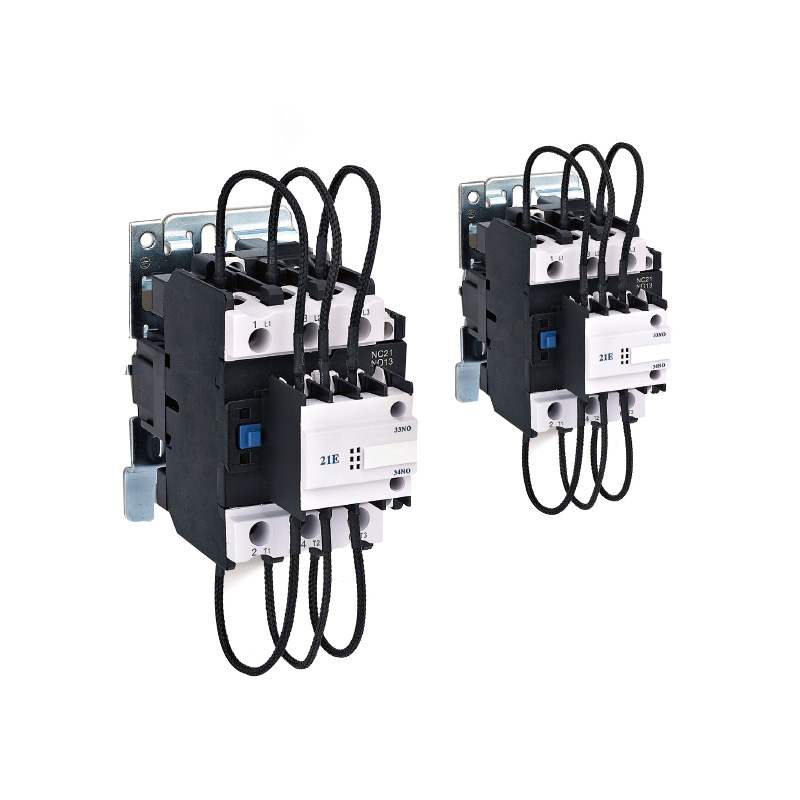

A capacitor switching contactor, also known as a capacitor-duty contactor, is a dedicated switching component engineered for frequent switching of power factor correction capacitors. Unlike ordinary contactors designed for conventional load control, this type of contactor adopts a unique built-in pre-charge resistance structure and early-make auxiliary contact design.

During the switching-on process, the internal limiting resistors are connected to the circuit first to suppress the huge instantaneous inrush current generated by capacitor charging. After the circuit voltage stabilizes, the main contacts close formally to complete steady-state power supply. This structural design avoids instantaneous current impact on capacitors and grid circuits, eliminating contact burnout and resonance risks caused by frequent capacitor switching.

Core Functions of Capacitor Switching Contactors

Capacitor switching contactors play an irreplaceable role in power factor correction systems, delivering practical and reliable protection for capacitor banks and distribution equipment:

● Inrush Current Suppression: The built-in pre-charge resistor structure effectively limits peak switching current, preventing contact melting, arcing, and equipment damage caused by capacitor instantaneous charging.

● Adaptive Reactive Power Switching: Automatically switches capacitor banks on and off according to real-time load reactive power demand, avoiding long-term no-load operation and reactive power waste of capacitors.

● Improved System Stability: Eliminates voltage fluctuations and power surge interference during capacitor switching, stabilizing the overall power distribution system operation and improving power quality.

● Extended Equipment Lifespan: Reduces frequent current impact on capacitors, transformers and circuit lines, lowering equipment failure rates and maintenance costs.

Typical Applications of Capacitor Switching Contactors

Capacitor bank contactors are extensively used in:

- Industrial plants where maintaining power factor is critical for cost efficiency.

- Buildings that have bigger electrical loads help to control voltage level and reduce the costs of peak demand.

- Electrical substations where they are vital for reactive power compensation.

How to Select the Right Capacitor Switching Contactor

When selecting a capacitor switching contactor, consider the following factors:

- Dimensions and design of the capacitor: Check for compatibility with the capacitors and the installation system in use.

- Handling inrush current: Select a model that can tolerate the peak inrush current characteristic of your application.

- Quality and brand name: Choose contactors only from reputable companies that manufacture a great product.

If you give careful consideration to these factors, you will be able to ensure the effectiveness and durability of the power management system.

FAQ

What is the primary purpose of a capacitor switching contactor?

The main objective is to regulate the current impulse that occurs when capacitors are switched on in order to prevent damage to the capacitor and improve the efficiency of the overall power system.

Can capacitor switching contactors be used in residential settings?

In the majority of cases, these tools are utilized in industrial sectors, as well as commercial ones, but they can also be utilized in large residential properties that do not have power factor correction systems.

How can I determine the right size for my capacitor switching contactor?

Be mindful of the sizes and shapes of the capacitors, their inrush current requirements, and work with manufacturers to identify models that suit your needs.

Summary

Capacitor switching contactors are core equipment for low-voltage power factor correction systems. Their unique current-limiting design effectively solves the problems of inrush current impact and frequent failures during capacitor switching. Selecting compliant, high-quality capacitor-duty contactors helps stabilize the system power factor, reduce energy loss and maintenance costs, and ensure long-term safe operation of industrial and commercial power distribution systems.
