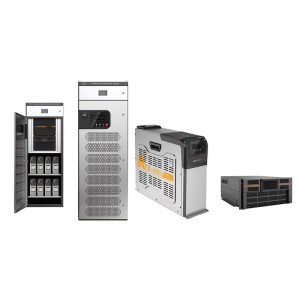

The Anti Harmonic Intelligent Power Capacitor is a integrated compensation system combining APF/SVG modules with HYBAGK anti-harmonic capacitors. Designed for high-capacity scenarios, it integrates three core functions: harmonic elimination, reactive power compensation, and unbalance correction, effectively solving power quality issues in industrial and distribution environments.

Operation Interface Advantages & Practical Value

What makes this product stand out in operation? The Anti Harmonic Intelligent Power Capacitor is equipped with a comprehensive operation interface that includes event logging, automatic alarm, fault recording, and parameter setting features. Users can easily monitor the device’s working status in real time, and the intelligent alarm system ensures timely response to abnormalities, reducing maintenance costs and downtime. Whether for daily operation or troubleshooting, this interface provides intuitive and reliable support.

Modular Design Features & Flexible Adaptability

The flexible modular design is another key advantage of the Anti Harmonic Intelligent Power Capacitor. The APF or SVG module is installed in a cabinet with incoming circuit breakers and fast fuses, while the HYBAGK capacitor module offers flexible capacity combinations from 5kvar to 60kvar. The APF/SVG module also has optional capacities: 50A (35kvar), 100A (70kvar), or 100kvar. This modular structure not only simplifies installation and maintenance but also allows for capacity expansion according to actual needs, adapting to the changing power requirements of different occasions.

Applicable Scenarios & Special Design Benefits

Targeted at power distribution rooms and industrial sites, the Anti Harmonic Intelligent Power Capacitor excels in large-capacity compensation. Its back panel features a ventilation design with filter holes, ensuring efficient heat dissipation and stable operation even under long-term high-load conditions. Additionally, the capacitor switches are controlled by the APF/SVG module, achieving intelligent and precise regulation that traditional compensation systems cannot match.

Comparison with Traditional Products & Comprehensive Advantages

Compared with traditional power factor compensation capacitor banks, the Anti Harmonic Intelligent Power Capacitor inherits the advantages of low cost and large capacity while overcoming critical drawbacks. Traditional systems suffer from slow response and switching speeds, single functionality, and discontinuous compensation, often leading to over-compensation or under-compensation. In contrast, this hybrid filtering and compensation solution integrates APF/SVG technology to eliminate harmonic currents and provide continuous reactive power adjustment, resulting in a power factor of over 0.95 after compensation. With its simple structure, low operating noise, and easy maintenance, it becomes a cost-effective and reliable choice for modern power quality management.
