In modern electrical systems, ensuring power quality and efficiency is critical. A Static VAR Generator (SVG) is a powerful tool designed to manage reactive power, stabilize voltage, and improve the power factor of an electrical network. But how does a static var generator work? In this article, we’ll explore the principles and applications of an SVG, shedding light on the vital role it plays in electrical power systems.

What is a Static VAR Generator?

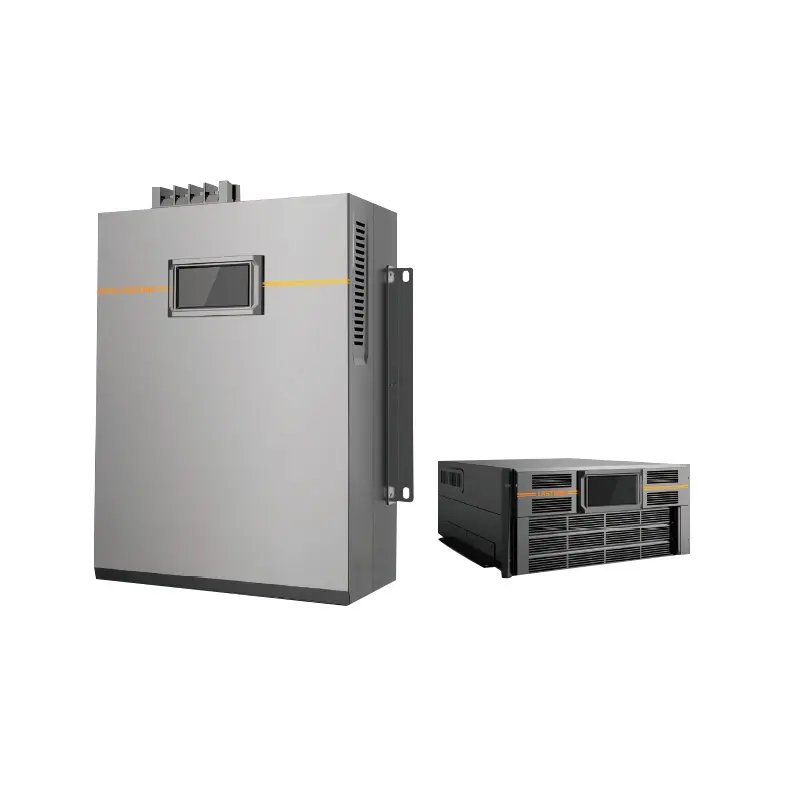

A Static VAR Generator, also known as SVG, is an advanced form of reactive power compensation equipment. It is used to dynamically regulate and compensate for reactive power in the grid. Reactive power is essential for the operation of equipment such as motors and transformers, but excess reactive power can lead to inefficiencies and increased electricity costs. That’s where an SVG comes into play, ensuring optimal power quality while preventing adverse effects caused by reactive power imbalance.

Principle of Operation: How Does a Static Var Generator Work?

An SVG operates on the principle of injecting or absorbing reactive power into the electrical system to maintain voltage stability and improve overall efficiency. Using high-speed semiconductor switching devices, Insulated Gate Bipolar Transistors (IGBTs), the static VAR generator continuously controls the reactive power output.

The process can be broken down as follows:

●Real-time monitoring: The SVG first detects the current power factor and reactive power levels in the electrical grid using advanced sensors.

●Calculation: Based on the detected values, the SVG determines the required amount of reactive power compensation to balance the system.

●Injection or absorption: The SVG then injects or absorbs reactive power based on the demand, ensuring voltage stability and optimal system performance.

Key Benefits of a Static Var Generator

Adopting SVG technology presents several advantages for both utilities and industrial facilities:

●Improved power quality: By regulating voltage and compensating for reactive power, an SVG minimizes voltage fluctuations and ensures a stable supply.

●Enhanced equipment efficiency: Reduced heat generation and energy losses lead to longer equipment lifespans and higher operational efficiency.

●Lower energy costs: By optimizing the power factor, electricity bills are significantly reduced due to decreased reactive power charges.

●Fast response time: SVG systems can respond to fluctuations in milliseconds, making them suitable for dynamic loads.

●Compact design: Compared to traditional solutions such as capacitor banks, SVG systems are more compact and require less maintenance.

Comparing SVG and SVC: What’s the Difference?

While both Static VAR Generators (SVG) and Static VAR Compensators (SVC) address reactive power issues, they differ in their technology and performance. An SVC typically relies on components such as Thyristor-Controlled Reactors (TCR) or Thyristor-Switched Capacitors (TSC), which operate in discrete steps. This often results in slower response times and lower precision compared to the continuous and efficient control provided by an SVG.

SVG systems can achieve near-unity power factor levels effortlessly, making them the preferred choice for industries with stringent power quality requirements.

Applications of Static VAR Generators

SVG Static Var Generators are widely used across various sectors, including:

●Renewable energy: SVGs stabilize power generated by solar and wind farms, mitigating voltage fluctuations and intermittency issues.

●Industrial facilities: Industrial applications requiring heavy machinery, such as manufacturing and mining, benefit from the improved power factor and reduced downtime offered by SVG technology.

●Data centers: With highly sensitive electrical loads, data centers rely on SVGs to maintain stability and avoid outages.

●Utilities: Power companies deploy SVGs to regulate reactive power and voltage in their distribution networks, ensuring uninterrupted supply to customers.

FAQs About Static VAR Generators

What is SVC and how does it work?

SVCs are devices for reactive power compensation. They use thyristors to switch between inductive and capacitive elements, balancing the grid’s power factor. They are effective but have slower response times than SVGs, making them better for less dynamic loads.

How does a static var generator work?

An SVG uses advanced semiconductors to monitor, calculate, and inject or absorb reactive power in real time. Its fast response maintains voltage stability and optimal power factor, even in dynamic systems.

What is the working principle of a static VAR generator?

An SVG dynamically injects or absorbs reactive power using semiconductor-based controllers. Real-time sensing and continuous control ensure optimal performance and reliable power quality.

The Static VAR Generator (SVG) is a cutting-edge solution for managing reactive power, maintaining voltage stability, and ensuring optimal power quality in electrical networks. Its continuous and fast-response operation makes it indispensable for industries and utilities alike. By integrating an SVG into your power system, you can achieve greater energy efficiency, lower costs, and improved system stability.
