In the present power reliant society, the successful management of electric energy systems is essential for industry and enterprise. An important part of the management is the understanding of reactive power. The Var generator is the technical device responsible for generating reactive power and is the vital object of this technical guide which describes the operation and benefits of the Static Var Generator (SVG).

Understanding Reactive Power and Power Factor

The operation of many electrical mechanisms such as induction motors and transformers depends on reactive power which is necessary for the regulation of the voltage level. In contrast to active power which actually performs useful work, reactive power is necessary for the stability of voltage and the productivity of active power. In order to enhance the power factor which is used to assess power efficiency.

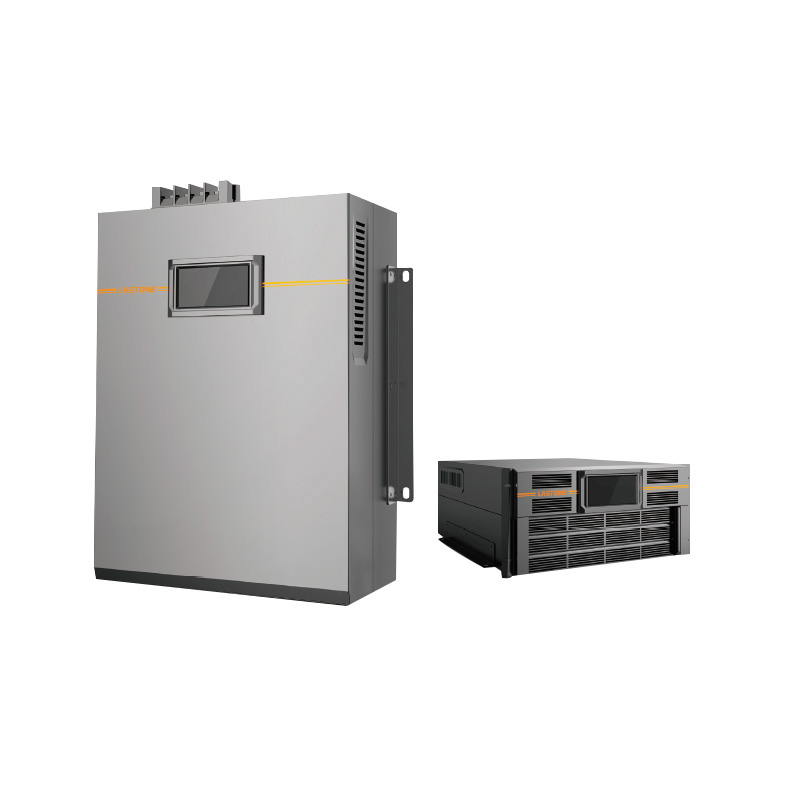

What Is a Static Var Generator (SVG)?

An SVG, or static var generator, is a sophisticated piece of equipment for the management of reactive power. Unlike conventional capacitors and inductors that provide fixed reactive power, an SVG allows for real-time response to changing conditions. This feature enables SVG to be an effective instrument for the optimization of power factor.

How Does a Var Generator Work?

The working of a Var Generator is based on advanced technology. Static Var Generators have an outer current transformer (CT) to identify load current right away. They measure reactive power in the processor within the unit and create PWM signals to operate internal insulated gate bipolar transistor (IGBT). It also allows for the generation of the current considered necessary for reactive compensation and gives the possibility of perfect dynamic reactive compensation. Not only is harmonic compensation provided, permitting to filter harmonics of up to the 50th order, but also smooth reactive power compensation for capacitive or inductive loads.

Benefits of Using a Static Var Generator

Investing in a Static Var Generator has numerous advantages, including:

●Improved power quality by achieving a better power factor

●Lower energy costs due to reduced demand charges

●Increased system stability and reliability

●Compact and flexible installations compared to conventional solutions

●Over 100,000 hours of operating life, equating to more than a decade of service

●Performing the complete balancing of three-phase loads and bringing both capacitive and inductive loads to the desired level of compensation in the range from -1 to 1.

Furthermore, SVGs work smoothly with current electricity infrastructures which means that they can be used in new systems or in upgrade operations on old systems.

FAQ

What components make up a Var Generator system?

A Var Generator system typically includes power electronic converters, control units, real-time monitoring sensors, and interfaces for system integration.

Can Static Var Generators be used in renewable energy systems?

Static Var Generators are beneficial to renewable energy systems because they control reactive power, improve power quality, and stabilize the grid.

Are SVGs difficult to install and maintain?

SVGs are built for easy installation with adjustable settings, and their need for little maintenance makes them a valuable option for improving power quality.

How do Var Generators affect energy efficiency?

Using a Var Generator increases the power factor thus resulting in reduced energy losses which leads to better energy efficiency of the electric system and lower expenses for energy.

Conclusion

Electricity providers, especially Static Electricity, play a vital role in enhancing power quality and increasing energy efficiency in various sectors. By utilizing their powers of control over reactive power proactively, companies are ensured a stronger system of electrical provision and management. Incorporation of such solutions is vital for improving current electrical systems.
