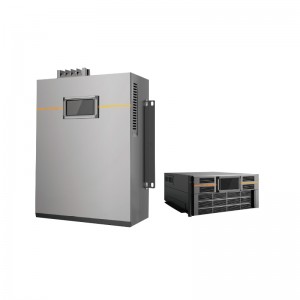

The HYSVG Static Var Generator (SVR) is an advanced device designed to improve power quality by providing dynamic reactive power compensation. This innovative technology uses external current transformers (CTs) to sense load current in real time and an internal digital signal processor (DSP) to calculate its reactive power. By sending pulse-width modulated (PWM) signals to internal insulated-gate bipolar transistors (IGBTs), the HYSVG SVR generates the necessary reactive compensation current, ensuring optimal performance in various electrical systems. What are the key features of HYSVG?

One of the key features of the HYSVG static VAR generator is its harmonic compensation capability. The system’s integrated active power filter (APF) effectively and simultaneously filters random harmonics from the 2nd to the 50th order. This capability is crucial for maintaining power integrity and minimizing distortion, which can lead to inefficiencies and potentially damage electrical equipment. By addressing harmonic distortion, the HYSVG static VAR generator contributes to a more stable and reliable power environment.

In addition to harmonic compensation, the HYSVG static VAR generator also excels in reactive power compensation. It provides stepless compensation for both capacitive and inductive loads, with a compensation range of -1 to 1. This flexibility enables the device to adapt to changing load conditions, ensuring optimal power factor. The HYSVG static VAR generator’s fast response time and 10 kHz operating switching frequency enable it to quickly respond to load changes, providing the dynamic compensation essential for modern electrical systems.

Another significant advantage of the HYSVG static VAR generator is its design life of over 100,000 hours, equivalent to more than ten years of reliable operation. This long service life reduces the need for frequent maintenance and replacement, making it a cost-effective solution for businesses and industries that rely on a stable power supply. The device can compensate for three-phase imbalance, ensuring efficient operation of all phases, which is crucial for balanced load distribution.

The HYSVG static VAR generator represents an advanced solution for managing power quality in power systems. With its harmonic compensation, reactive power compensation, and fast response capabilities, it has become a key component for industries seeking to enhance power management strategies. The HYSVG static VAR generator’s long lifespan and adaptability make it a valuable asset for maintaining optimal performance in a variety of applications. As the demand for efficient power solutions continues to grow, the HYSVG static VAR generator is expected to play a key role in shaping the future of power systems.
