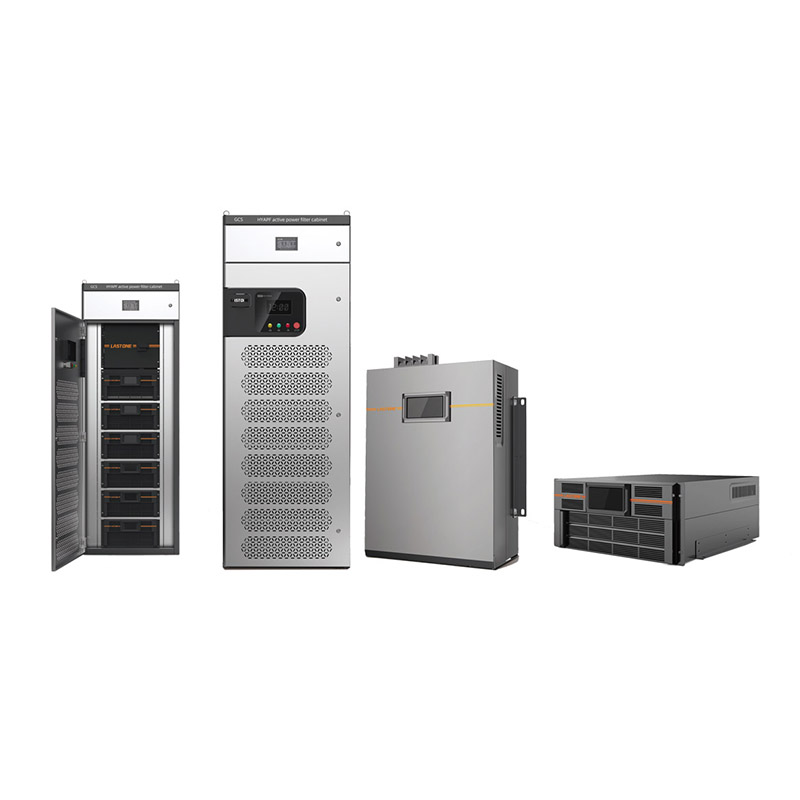

The HYAPF active power filter cabinet are an advanced solution for improving power quality in power systems. This innovative device uses external current transformers (CTs) to monitor load current in real time. The HYAPF utilizes an advanced internal digital signal processor (DSP) to calculate the harmonics and reactive power components of the load current. It then generates a compensating current of equal magnitude but phase-shifted to counteract the detected harmonics and reactive power, effectively filtering and compensating for these undesirable components in the power system.

A key feature of active power filters is their harmonic compensation capability. HYAPFs can simultaneously filter out a wide range of random harmonics, from the 2nd to the 50th order. This capability is crucial for maintaining the integrity of power systems, as excessive harmonics can lead to overheating, equipment failure, and increased energy costs. By using HYAPFs, users can ensure efficient and reliable system operation, minimizing the risk of disruptions caused by harmonic distortion.

In addition to harmonic compensation, active power filter banks also excel at reactive power compensation. HYAPFs provide stepless compensation for both capacitive and inductive loads, with a compensation range from -1 to 1. This flexibility enables precise adjustment to the specific needs of the power system, ensuring optimal performance. The ability to effectively manage reactive power not only improves the overall power factor but also enhances the efficiency of the entire power grid.

Another major advantage of the HYAPF active power filter is its fast response time. The system is designed to quickly react to changes in load conditions, ensuring almost instantaneous compensation. This rapid response is crucial in dynamic environments where load conditions frequently fluctuate. By maintaining stable power quality, the HYAPF helps protect sensitive equipment and extend the life of electrical components.

The HYAPF active power filter is a powerful solution for addressing power system harmonic and reactive power challenges. Its advanced detection and compensation capabilities, fast response time, and excellent service life make it a reliable choice for improving power quality. Are you ready to improve power system performance with HYAPF?
