Electrical engineering and power management have evolved significantly with advances in technology resulting in a demand for greater efficiencies and improved quality of power. One new type of solution developed is the Static Var Generator (SVG) that has revolutionised the way we manage reactive power in electrical systems. This article discusses the principles behind Static Var Generators, their applications as well as comparing them to traditional solutions such as capacitor banks.

What Is a Static Var Generator and How Does It Work?

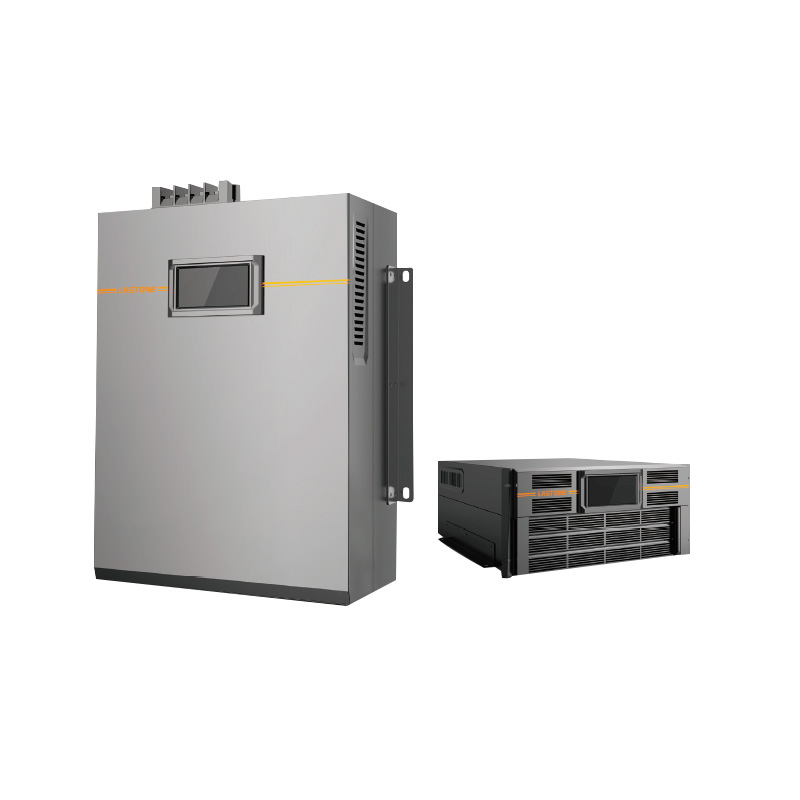

A Static Var Generator (SVG) is an electrical device that provides dynamic reactive power support to the grid. Unlike conventional systems that use electromechanical components, SVGs rely on semiconductor devices to control reactive power output with greater accuracy and speed. Their response to load changes is nearly instantaneous, making SVGs essential in modern power systems.

The SVG maintains voltage stability by injecting or absorbing reactive power in response to load changes. Its nearly instantaneous response is enabled by Insulated Gate Bipolar Transistors (IGBTs), which allow continuous and precise output adjustment. This makes SVGs a critical tool in modern power systems.

How a Static Var Generator Improves Power Quality

Enhancing power quality is one of many benefits of utilizing a Static Var Generator. Stable voltage levels, distortion-free signals and greater reliability of electrical systems are all associated with improved power quality. By providing fast reactive power compensation; SVG’s reduce the chance of voltage sags, swells and flickers that could negatively impact sensitive equipment.

Advanced filtering methods within SVG’s (filters) have the ability to minimize harmonics; thereby protecting devices from damages and helping to meet strict regulatory requirements. So, businesses that adopt SVG’s should experience increases in operational efficiency and lower machine costs due to less equipment failure and downtime.

Static Var Generator vs. Capacitor Banks: Which Is Better for Your Project?

There are many differences between SVGs (Static Var Generators) and traditional capacitor banks. Capacitor banks have been used for many years but do not have a dynamic response like SVGs do. Capacitor banks typically operate on a fixed value or in stages (incrementally), which means they respond slowly to changes in reactive power conditions.

Contrarily, SVGs have quicker response times and a greater ability to control load changes than other types of power electronic equipment and, therefore, can be very useful in situations where load changes rapidly. In addition, SVGs can operate over a larger frequency range and adapt to multiple systems; hence, SVGs are considered to be more flexible than capacitor banks, which are less flexible by their nature.

The determination for selecting between SVG’s and Capacitor Banks will ultimately be based on the specific project requirements; this includes looking at the load characteristics, response time requirements, and approximate budget restraints. In more complex, industrial & commercial applications where power quality is essential; an SVG may be a better option than capacitor banks.

Other Considerations in Selecting Reactors for Your Power System

Engineers and decision-makers need to take into account other factors when choosing their reactive power solution besides understanding how SVGs differ from capacitor banks. These factors include the total load being placed on the electrical system, whether or not there will be any future expansion, environmental conditions where the equipment will be installed, and ongoing maintenance. A thorough evaluation will ensure that the selected technology will meet both operational and regulatory requirements.

With the continuing evolution of power demand, it is critical to implement flexible and dependable reactive power solutions. The use of Static Var Generators marks a movement toward sustainable, energy-efficient electric systems.

FAQ: Common Questions About Static Var Generators

What Is the Lifespan of a Static Var Generator?

With proper usage according to manufacturer guidelines along with scheduled preventative maintenance, statics VAR generators produced today have an expected service life of 20 to 25 years. Lifespan is affected by many variables including the environment in which they operate and how much energy they use each day.

Can an SVG Handle Sudden Load Fluctuations?

Certainly, SVGs are built to accommodate sudden spikes and/or drops in building loads. Incredibly fast, sophisticated electronics provide immediate response times, allowing for a high-quality power supply to be maintained while the system remains stable, even under rapidly changing demand for electricity.

How Much Energy Does a Static Var Generator Save?

Although SVGs don’t create energy, they do improve how power is used by keeping a high power factor and lowering the amount of reactive power. They often save large quantities of energy in the long run, especially for locations that require lots of electricity.

What Maintenance Does an SVG Require?

You will need to perform inspection periodically on a Static Var Generator to maintain its ability to operate properly; e.g., check that the cooling system is working; clean the filters; inspect all components; and update firmware, if necessary, in order to maintain maximum performance. The intervals of maintenance may vary by the specific equipment’s and environment’s respective requirements.

Is Installation Complex?

Most manufacturers offer thorough setup support, but proper commissioning typically requires an expert. Without it, the SVG may not perform optimally within your system.

Static Var Generators are at the forefront of electrical engineering innovation, driven by growing demands for power quality and efficiency. Understanding their principles and applications helps businesses and engineers make informed decisions that enhance operations. Stakeholders should assess their specific project needs to select technologies that deliver the best performance and reliability.
