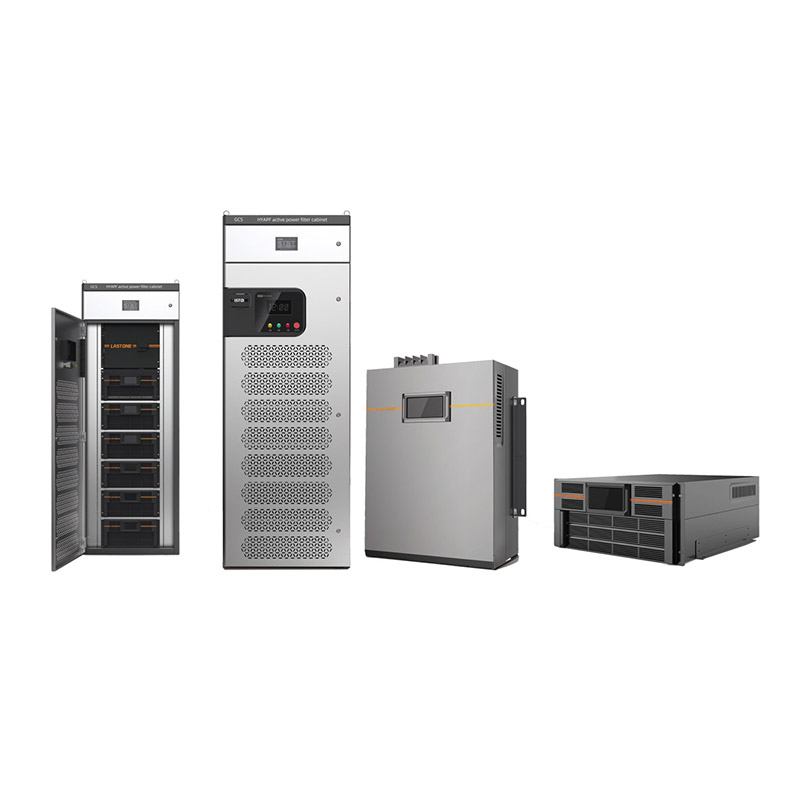

Power quality is a critical element of modern power systems, and the HYAPF active power filter cabinet is designed to significantly improve it. The HYAPF/HYSVG system utilizes advanced technology to monitor load current in real time using external current transformers (CTs). The system’s built-in digital signal processor (DSP) calculates the load current’s harmonics and reactive components. This information is then transmitted to the internal insulated-gate bipolar transistors (IGBTs) via pulse-width modulated (PWM) signals. The IGBTs generate a compensation current that mirrors the amplitude of the detected component and is inversely proportional to its phase angle. This complex filtering process enables the HYAPF to effectively filter and compensate for power quality issues.

Power quality isn’t just about maintaining stable voltage; it also involves managing harmonics and reactive power. The HYAPF active power filter excels in harmonic compensation, capable of filtering out random harmonics from the 2nd to the 50th order. This wide compensation range ensures that various types of harmonic distortion can be addressed, thereby improving the overall efficiency and reliability of the power system. The reactive power compensation function allows for stepless adjustment of capacitor and inductor power between -1 and 1, which is crucial for optimizing power factor and reducing energy loss.

HYAPF’s fast response time further enhances power quality. It’s designed to react quickly to changes in load conditions, enabling almost instant compensation. This rapid response is crucial in environments with frequent load fluctuations, such as industrial settings or commercial buildings. By maintaining optimal power quality, HYAPF helps protect sensitive equipment from damage and ensures smooth, uninterrupted operation.

Power quality is also closely linked to its lifespan and reliability. The HYAPF active power filter cabinet is designed for a service life exceeding 100,000 hours, equivalent to over ten years of continuous operation. This durability is a significant advantage for businesses seeking a long-term power quality solution. With minimal maintenance requirements and a rugged design, HYAPF provides a reliable solution that can withstand the rigors of daily use.

Have you ever experienced lights flickering or equipment malfunctioning due to poor power quality? It can be frustrating, especially when it interferes with your work or daily activities. The HYAPF active power filter can help alleviate these problems. By addressing harmonics and reactive power issues, it ensures your power system operates at peak performance. If you’re looking to improve power quality, why not consider investing in a solution that’s both efficient and durable?

The HYAPF active power filter is an effective tool for improving power quality in a variety of applications. Its advanced harmonic and reactive power compensation capabilities, fast response time, and excellent design life make it a reliable solution for businesses optimizing their power systems. By prioritizing power quality, businesses can protect their investments and ensure smooth operations for years to come.
