Selecting the correct capacitor is essential for reliable motor operation, energy efficiency and equipment longevity. This guide is intended for engineers, technicians and procurement staff who need a practical method for determining capacitor size and for avoiding common mistakes during installation or replacement.

The Role of Motor Capacitors in Electric Motors

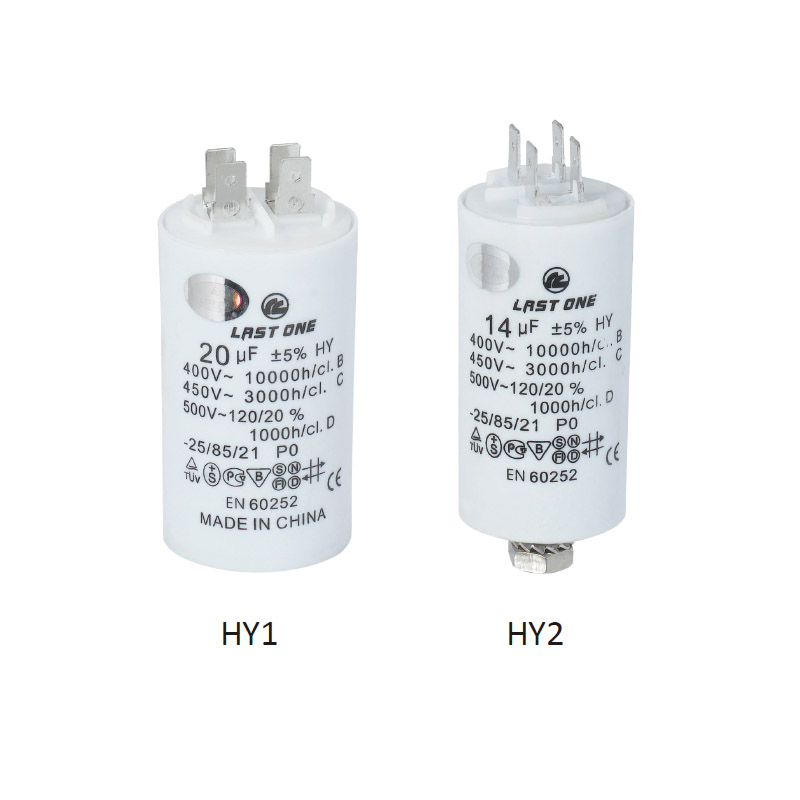

A motor capacitor stores and releases charge to create the phase shift required for starting and running single-phase motors. Correct selection supports dependable operation, smoother starting and more stable power factor across commercial, industrial and residential applications.

Types of Motor Capacitors

● Start capacitor — provides high initial torque and remains in the circuit only briefly during start-up. Typically used where the motor must overcome a large starting load.

● Run capacitor — stays in the circuit during normal operation, improving efficiency and running performance.

● Pump-duty capacitor — a run capacitor specified for pump applications, generally selected for the duty cycle and environmental conditions of pump motors rather than as a separate functional category.

Which type applies depends on the motor design and the intended application; the nameplate and manufacturer documentation should be the primary reference.

Why Proper Capacitor Sizing Matters

An incorrectly sized capacitor can prevent the motor from starting, cause poor running performance or shorten service life. A capacitance value that is too low may result in insufficient starting torque and increased heating; a value that is too high can raise current draw and accelerate insulation and winding degradation. Correct sizing supports reliable operation, better efficiency and reduced overheating risk.

Simple Calculation for Motor Capacitor Sizing

Sizing should begin with the motor’s nameplate data — rated power, voltage, frequency and, where available, the manufacturer’s recommended capacitance.

Where only a rough estimate is needed, empirical formulas are sometimes used as a starting point. These vary between sources and are generally applicable to single-phase motors at a stated voltage and frequency, so they should be treated as indicative rather than definitive:

Run capacitor: an estimate based on rated power and supply voltage, commonly expressed in microfarads per horsepower at a given voltage.

Start capacitor: typically several times the run value, since it only needs to supply torque during the short starting period.

For an accurate figure, refer to the manufacturer’s capacitor selection chart for the specific motor model. Where a chart and a calculated estimate disagree, the manufacturer’s recommendation should take precedence.

Common Sizing Mistakes to Avoid

● Incorrect voltage rating — an under-rated capacitor is a common cause of premature failure.

● Incorrect capacitance — leads to inefficiency, poor starting or excessive current.

● Substituting one type for the other — start and run capacitors serve different functions and are not interchangeable.

● Using generic components — always match both capacitance and voltage rating to the motor’s specifications.

How to Choose the Right Capacitor

Prioritise capacitors from established manufacturers with appropriate certifications and temperature ratings suited to the installation environment. Confirm that the physical dimensions fit the motor housing or enclosure, and select oil-filled or dry types according to the application. A properly matched capacitor reduces both safety risk and downstream repair cost.

FAQ – Capacitor Types, Sizing and Installation

What happens if the capacitor is incorrectly sized?

Too small: reduced starting power and increased heating. Too large: higher current draw, reduced effectiveness and potential safety concerns.

Is a higher voltage-rated capacitor acceptable?

Generally yes, provided the capacitance is correct and the physical size fits. Never use a capacitor rated below the required voltage. Note that a higher rating may increase size and cost.

Can I replace one myself?

Yes, if appropriate safety procedures are followed: isolate the power supply, allow the capacitor to discharge, and verify that ratings and capacitance match the original specification.

How can I tell whether a capacitor has failed?

Common indicators include the motor failing to start, humming without turning, unusual heating or a visibly bulged or leaking capacitor body. Capacitance measurement with a suitable meter can confirm the condition.

Motor Capacitor Sizing Tools

Manufacturers often provide online calculators and selection charts. A capacitance meter can be used to verify the actual value of an installed capacitor, and datasheets should be consulted for standard definitions and recommended practice. Holding spare capacitors is a reasonable precaution for critical systems.

Regulatory and Environmental Considerations

Comply with local electrical and environmental requirements when disposing of removed capacitors. Where available, selecting RoHS-compliant, energy-efficient types can help reduce both operating cost and environmental impact.

Conclusion

Correct motor capacitor sizing is vital for safe and efficient operation. Accurate results come from understanding the function of each capacitor type, using nameplate and manufacturer data as the primary reference, avoiding the common sizing errors outlined above, and specifying quality components.
