Efficient power factor correction and voltage regulation are essential in modern electrical systems. At the core of these solutions is the Capacitor Switching Contactor. Whether you manage a factory, commercial facility, or design electrical networks, selecting the right contactor for your capacitor banks is crucial for system reliability and operational safety. This guide explains key factors to consider, how to match contactor ratings, and answers common questions for real-world applications.

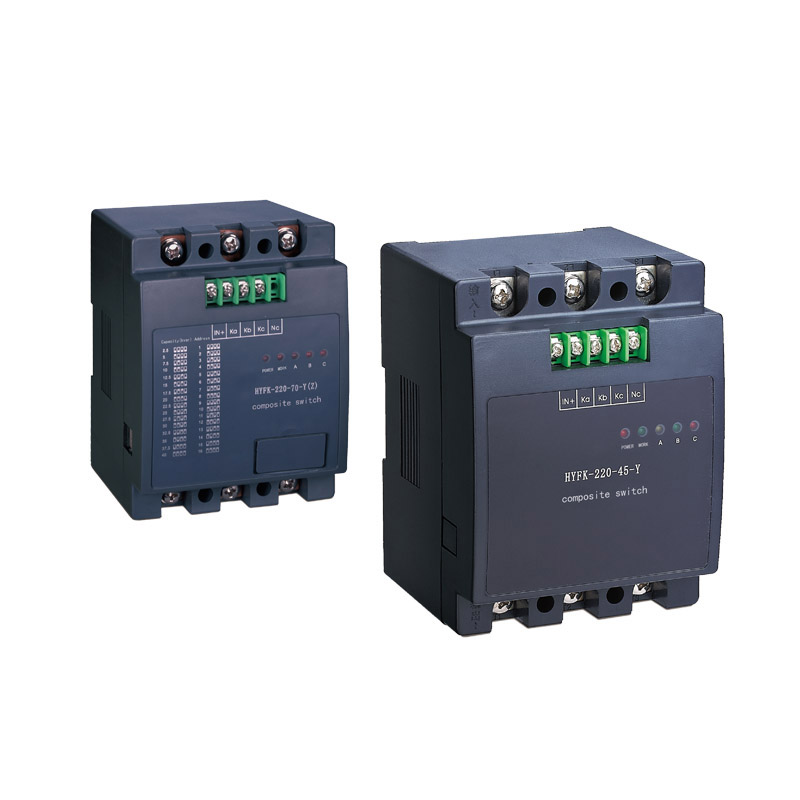

Understand the Role of Capacitor Switching Contactors

Capacitor Switching Contactors are engineered specifically to cope with the high inrush currents that occur when capacitor banks are energized. These devices are not interchangeable with standard contactors, which are designed for resistive or inductive loads such as motors. Capacitor duty contactors feature specialized components like pre-charge resistors and arc protection to ensure safe, enduring operation in power factor correction systems.

Key Technical Specifications to Evaluate

When choosing a Contactor for capacitor bank, consider several important parameters:

● Voltage and Current Ratings: Match your contactor’s voltage rating with system requirements, commonly 230V, 400V, or 690V. The contactor must handle the nominal capacitor current, with extra capacity for fluctuating load conditions.

● Inrush Current Handling: High surge currents during switching require contactors engineered to limit this stress through damping elements such as resistors or current-limiting devices.

● Mechanical and Electrical Endurance: Appliances with frequent switching, especially automated capacitor banks, need contactors enduring high operations—often in the hundreds of thousands or millions.

● Auxiliary Contacts and Accessories: Verify compatibility with system controllers, indication and protection equipment, and ensure auxiliary contacts are available for signaling and feedback.

Assess Inrush Current and Damping Requirements

Managing inrush current is the main challenge with capacitor banks. Properly designed contactors minimize surge currents, reducing risk of contact welding, equipment damage, and false tripping. Verify each contactor’s inrush rating, especially if multiple capacitor banks may be switched in rapid succession or in parallel.

Match Contactor Ratings to Your Capacitor Bank

Correct matching involves:

● Calculating Capacitor Current: Capacitor Current = kVAR rating × 1000 / (√3 × voltage). Always include a safety margin, considering harmonics and system anomalies.

● System Conditions: If your power network features significant non-linear loads or harmonics (such as from drives or large UPS), select contactors suited for these environments, or for filter and detuned banks.

● Planning for Future Needs: Consider contactors with modular flexibility or slightly higher ratings for possible expansion or increased correction requirements.

Evaluate Environmental Conditions

Installation conditions impact contactor performance:

● Ambient Temperature: Most contactors operate between -5°C and 55°C, but use equipment rated for the environment, especially in industrial or outdoor settings.

● Humidity, Dust, Corrosive Atmospheres: Use contactors with higher protection classes (e.g., IP54) or sealed designs when installed in harsh conditions.

● Physical Installation: Adhere to mounting guidelines to ensure contactor longevity, especially regarding orientation and vibration exposure.

Ensure Compatibility with Protection and Control Systems

Match your contactor’s coil voltage with panel auxiliary power needs. Auxiliary contacts are essential for remote status monitoring and interlocks. Surge protection for coils is recommended in digitally controlled panels. For panels with multiple banks, interlocking or time-delay relays may be needed to prevent simultaneous switching.

Manufacturer Quality and Certification

Choose Capacitor Switching Contactor products from reputable manufacturers. Look for compliance with IEC 60947-4-1, CE, UL, or regional certifications. Trusted brands offer reliable documentation, technical support, and warranties, ensuring operational safety and long-term reliability.

Installation and Maintenance Best Practices

Proper installation and regular inspection preserve system performance:

• Torque terminals according to specifications.

• Inspect contact tips for wear or damage.

• Confirm coil voltage stability.

• Ensure panel cooling and adequate ventilation.

• Maintain arc quenching systems in medium/high-voltage installations.

Frequently Asked Questions About Capacitor Switching Contactors

What is the difference between a standard contactor and a capacitor duty contactor?

Capacitor duty contactors are specifically built to handle inrush currents with specialized components, while standard contactors are not and may fail prematurely.

Do all capacitor banks experience high inrush currents?

Yes, inrush current is intrinsic to capacitor switching and always needs management.

Can I use higher-rated contactors?

A small rating margin is prudent, but excessive oversizing increases cost without improving performance. Balance actual requirements with flexibility for future expansion.

What maintenance is required?

Inspect contacts, check coil voltage, maintain arc quenching systems, and monitor periodically for wear and abnormal operation.

The correct Capacitor Switching Contactor ensures safe, efficient, and reliable power factor correction. Evaluate technical requirements, environmental factors, control compatibility, and manufacturer quality for best results. With careful selection and maintenance, your capacitor bank will deliver years of dependable service, supporting optimized electricity usage and equipment longevity.
