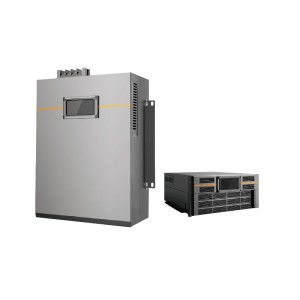

An active power filter (APF) is an advanced solution designed to improve power quality by effectively managing harmonics and reactive power in power systems. The HYAPF active power filter operates by sensing the load current in real time through an external current transformer (CT). It utilizes an internal digital signal processor (DSP) to calculate the harmonics in the load current. This information is then transmitted to internal insulated-gate bipolar transistors (IGBTs) via pulse-width modulation (PWM) signals. The IGBTs generate a compensation current that mirrors the amplitude of the detected harmonics and has an opposite phase angle. This innovative approach effectively filters out unwanted harmonics, ensuring a stable and reliable power supply.

Active power filters (APFs) are particularly effective in environments where power quality is critical. HYAPFs can simultaneously filter out random harmonics from the 2nd to the 50th order, making them a valuable asset for industries that rely on sensitive electronic equipment. By reducing these harmonics, APFs not only protect equipment but also improve overall system efficiency. Have you ever wondered how much energy you could save by reducing harmonic distortion in your electrical system? The answer lies in the effective deployment of active power filters.

In addition to harmonic compensation, active power filters (APFs) also excel at reactive power compensation. HYAPFs provide stepless capacitance and inductance compensation, ranging from -1 to 1. This flexibility enables precise adjustment to the specific needs of the power system. The APF’s fast response time ensures near-instantaneous response to any fluctuations in load conditions, maintaining optimal power quality at all times. Operating at a switching frequency of 10K, the APF is designed to achieve extremely fast dynamic compensation, making it suitable for a wide range of applications.

Another major advantage of active power filters is their exceptionally long design lifespan, exceeding 100,000 hours, equivalent to over ten years of reliable operation. This long service life not only reduces maintenance costs but also minimizes downtime, allowing businesses to focus on their core business without worrying about power quality issues. APFs feature three-phase imbalance compensation, ensuring balanced and efficient operation of all phases in the power system.

Active power filters represent a significant advancement in power quality management. By effectively addressing harmonics and reactive power issues, HYAPFs offer a comprehensive solution for industries seeking to improve their power systems. With their fast response, long design life, and ability to compensate for a wide range of load conditions, APFs are essential tools for any organization seeking to enhance power quality. Are you ready to further optimize your power system with active power filters?
